Relay

Product Features

Automobile relays and safety pieces are indispensable safety components in automobile circuits, they jointly maintain the safety  and stable operation of automobile circuits, ensure that the car can work normally under various working conditions, and improve  the safety and reliability of automobiles

Product Overview

ModelJ1204D/1205D、J2404D/2405D
Terminal Material1A/1B/1C
WattageSilver Alloy
Rated Isolation Current80A
Contact Resistance50m
Nominal Coil Voltage12V-24VDC
Coil Power Rating1.8W
Breakdown Voltage550V AC
Breakdown Voltage between contact and coil750V AC
Insulation Resistance100m
Electrical Lifespan100,000 times
Mechanical Lifespan10,000,000 times
Rated Temperature-40℃ ~+85℃
Pull-in Time10ms
Release Time5ms
Terminal Configurationplug-in or welding
Physical Size28x31.2x25mm
Shell formflat housing, Iron or plastic support
Application12V (4 or 5pins)
24V(4 or 5pins) 通用

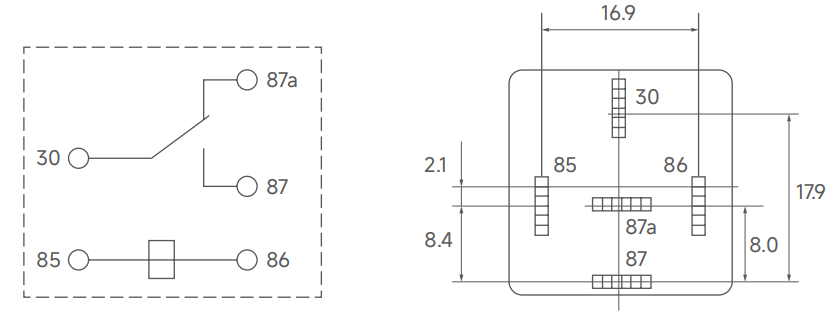

Relay size drawing
